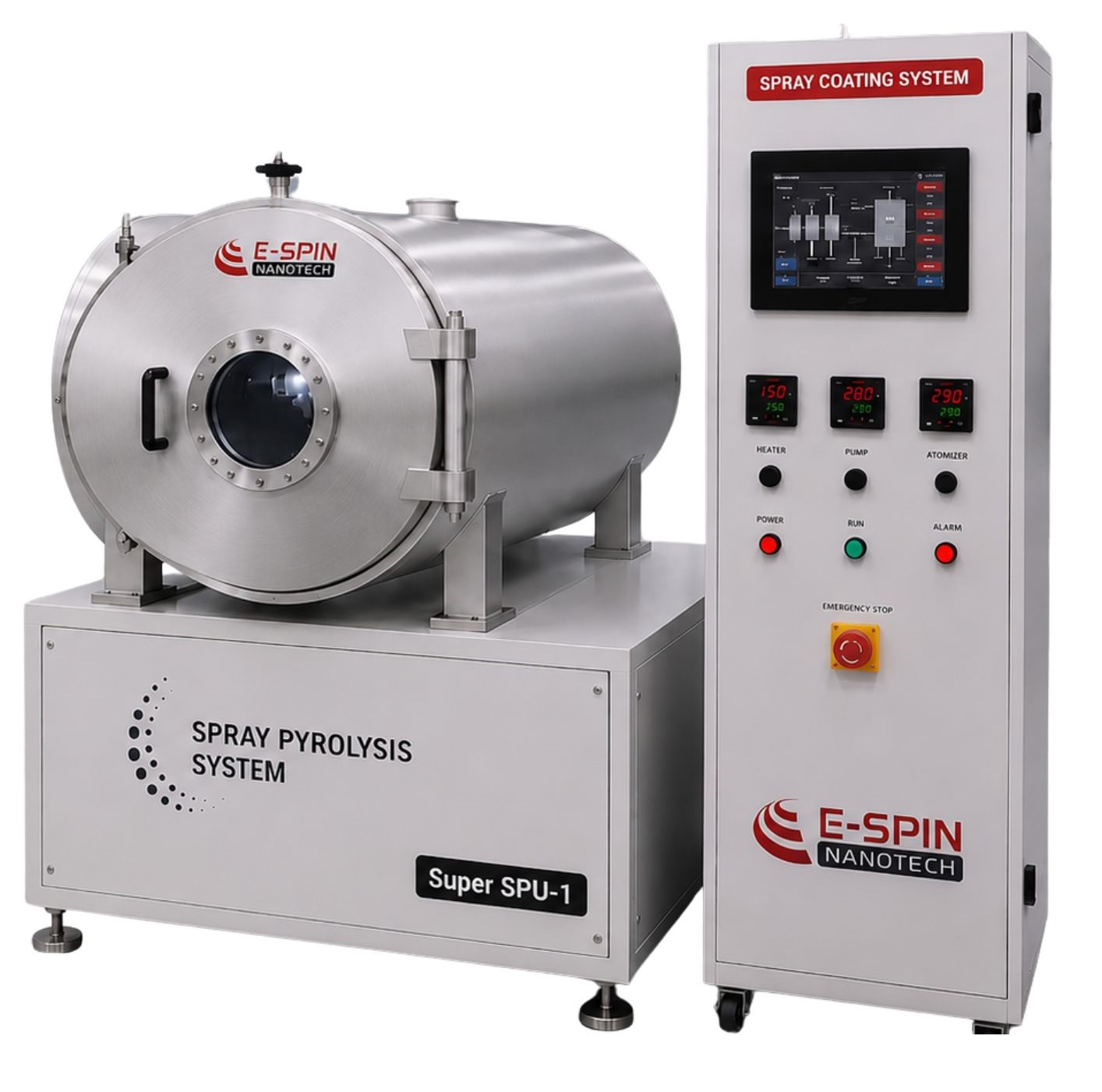

Super SPU-1

Spray Chamber

Vacuum sealed cylindrical chamber with dish-end at back and front-side
Viewing port at front door, LED lightings inside the chamber
Dimension (Diameter x Length/ Depth): 1200 mm x 1300 mm
Material of construction – Stainless steel 304 grade
Coating area – 500 mm x 500 mm (Customizable to 200mm x 200mm) as per requirement if required
Stand-alone construction with Wheels and anti-Vibration mount
Vacuum Sealed feedthroughs/gland for electrical, air/N2, solution into the chamber

Vacuum sealed cylindrical chamber with dish-end at back and front-side viewing port at front door, LED lightings inside the chamber.
Dimension (Diameter × Length/Depth): 1200 mm × 1300 mm
Material of construction – Stainless steel 304 grade
Coating area – 500 mm × 500 mm (customizable to 200mm × 200mm) as per requirement if required
Stand-alone construction with Wheels and anti-vibration mount
Vacuum sealed feedthroughs/gland for electrical, air/N2, solution into the chamber

Rotary vacuum pump with square butterfly valve + T-section and leak valve provided. Rotary pump of capacity minimum – 50 LPM or higher
Provision to perform Spray coating at atmospheric pressure – Provision for inlet with filter and Exhaust to be attached to the chamber. Vacuum sealed Valves to be attached to this chamber for this purpose

Ultrasonic nozzle with corrosion protection (Teflon) – 1 quantity. Working frequency – 120 kHz Aerosol Droplet size – 15 microns Flow rate – 1 to 20 ml/min. Viscosity of the precursor – less than 10 cps
Low Volume Low Pressure Pneumatic nozzle – 1 quantity with minimum overspray. Orifice diameter of 0.046 inch and rotary adjustable flow control mechanism
Syringe pump – 1 quantity with controller and drive unit, Single channel Flow rate – 0.2 nano liter/min to 80 ml/min, capacity – 10 micro litre to 60 ml syringes
Peristaltic pump – 1 quantity. Flow rate – 5 micro L/min to 60 ml/min. No of channels: Single

Programmable logic controller (PLC) Based Automation with 4 axis Motion Control system
16 digital input and 16 output module
4 analogue input/output module
4.4 Human Machine Interface (HMI) as input device – 7 inch touch screen
Pneumatic control valves manifolds to operate valves
PLC programming and Integration
Control panel accessories – MCB & Control Switches, contactors and power supply, Wiring equivalent to IEC standard

Dimensions: 900 mm × 800 mm × 200 mm (L × B × H)
Stroke length X-axis – 700 mm
Stroke length Y-axis – 700 mm
Stroke length Z-axis – 150 mm
Theta – 90°
Gantry to be protected with anodized aluminum enclosures
Additional passive X-axis for stability
Gantry stroke length with sufficient offset to be provided in order to access the whole area by the four nozzles

Mo/SiC Hot Plate Dimension – 150 mm × 150 mm (Total size – 400 mm × 400 mm)
Molten Tin Bath Substrate heater: Dimension – 150 mm × 150 mm (Total size – 400 mm × 400 mm)
K-type thermocouple heater coil, K-type Thermocouple Maximum Temperature – 500°C +/- 50°C, Temperature control by J-type with Thyristor controller, Programmable PID controller using PLC in conjunction with transistor and analogue input/output
